Description

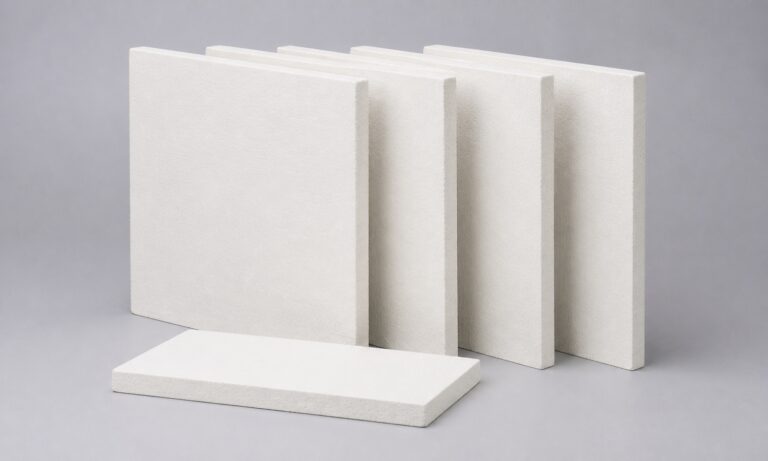

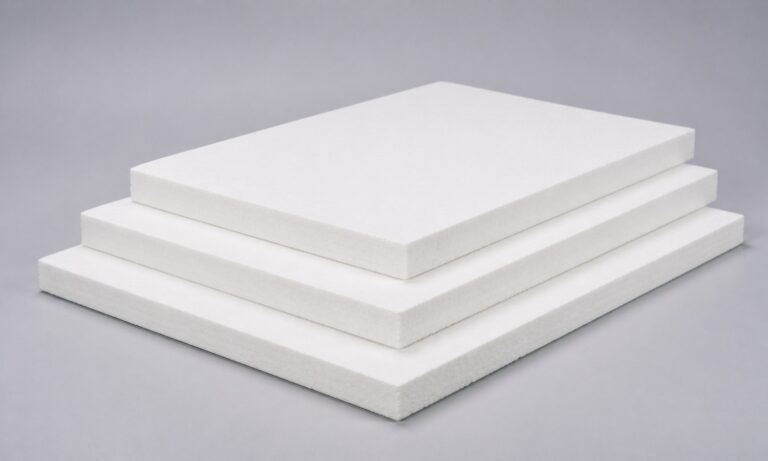

JHYRef ceramic fiber board is a rigid, self-supporting insulation product manufactured from ceramic fiber bulk and selected binders through a vacuum-forming process. It offers low thermal conductivity, uniform density, good dimensional stability and resistance to high gas velocities, vibration and erosive forces. Temperature grades from 1050°C to 1700°C are available for furnace linings, backup insulation, boiler ducts, kiln equipment and other high-temperature applications.
Different formulations are available for specific operating conditions. Hydrophobic ceramic fiber board is designed for humid environments and applications requiring reduced water absorption. Inorganic-bonded ceramic fiber board is suitable for applications where smoke and odor from organic binder burnout during initial heating must be minimized.
Advantages of Ceramic Fiber Board
• High Strength & Long Service Life
The rigid, self-supporting structure provides good mechanical strength and reliable performance during installation and service.
• Low Heat Storage & Thermal Conductivity
Low heat capacity and thermal conductivity help reduce heat loss, shorten heating cycles and improve thermal efficiency.
• Easy Cutting & Installation
The board can be easily cut, shaped and machined to fit different equipment dimensions and installation requirements.
• Chemical & Corrosion Resistance
Provides stable performance and resistance to many common chemicals and corrosive industrial environments.
• Uniform Structure & Stable Performance
Uniform fiber distribution and consistent density support reliable insulation performance during continuous high-temperature operation.
• Sound Absorption & Noise Reduction
The porous fiber structure provides useful sound absorption and helps reduce noise around industrial equipment.
Specification
| Ceramic Fiber Board | JHY1050 C-RBD | JHY1260 ST-RBD | JHY1260 HP-RBD | JHY1350 HA-RBD | JHY1430 Zr-RBD | JHY1600 PCF-RBD | JHY1700 PCF-RBD | JHY1800 PCF-RBD | |
| Max-Service Temperature (°C) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | 1700 | 1800 | |
| Density (kg/m3) | 220/250/280/300/320/350/380/400 | 400/450/500/550 | |||||||
| Linear Shrinkage (%) After Burning, 24h | ≤3.0 950°C | ≤3.0 1050°C | ≤3.0 1100°C | ≤3.0 1200°C | ≤3.0 1300°C | ≤1.0 1450°C | ≤1.0 1550°C | ≤1.0 1650°C | |
| Modulus of Rupture (MPa) | ≥0.3 | ≥0.4 | ≥0.4 | ≥0.4 | ≥0.4 | ≥0.6 | ≥0.6 | ≥0.6 | |
| Loss on Ignition (%) | ≤8.0 | ≤4.0 | |||||||
| Thermal Conductivity W/(m·K) | 400°C | 0.08 | – | – | – | – | – | – | – |
| 600°C | 0.12 | 0.12 | 0.12 | 0.12 | – | – | – | – | |
| 800°C | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.17 | 0.17 | 0.17 | |
| 1000°C | – | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Chemical Composition (%) After Burning | Al2O3+SiO2 | ≥96.0 | ≥97.0 | ≥98.0 | ≥98.0 | ≥86.0 | ≥99.0 | ≥99.0 | ≥99.0 |
| ZrO2 | – | – | – | – | ≥10.0 | – | – | – | |
| Others | ≤4.0 | ≤3.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Standard Size (L×W×T) mm | 1200/600×1000×(6-105), 1200×500×(6-105) | 1000/900×600×20-150 | |||||||
| Package | Cartons or Pallets | Wooden | |||||||
| Other product sizes and packaging options are available as required. | |||||||||
| Recommended using temperature: In an oxidizing or neutral atmosphere, 100～250°C lower than the maximum service temperature. In a reducing atmosphere, 200～350°C lower than the maximum service temperature. | |||||||||
Applications of Ceramic Fiber Board
Backup Insulation for Industrial Furnaces
Ceramic Fiber Board are used as rigid backup insulation behind refractory linings in high-temperature industrial furnaces, helping reduce heat loss and improve overall thermal efficiency.
Hot-Face Linings for Kilns and Heat-Treatment Furnaces
Suitable for hot-face linings in ceramic kilns, heat-treatment furnaces and other industrial thermal-processing equipment where structural rigidity and resistance to high gas velocities are required.
Aluminum Processing Equipment
Used as hot-face or backup insulation in aluminum melting furnaces, holding furnaces and related thermal-processing equipment, subject to the selected board grade and operating conditions.
Ceramic Fiber Board Manufacturing & Customization
JHYRef manufactures ceramic fiber boards for industrial furnace builders, refractory contractors, distributors and high-temperature insulation projects. Standard and customized boards are available in different temperature grades, densities, thicknesses and dimensions. Send JHYRef your operating temperature, furnace atmosphere, required size and order quantity for product selection and a factory quotation.
