Description

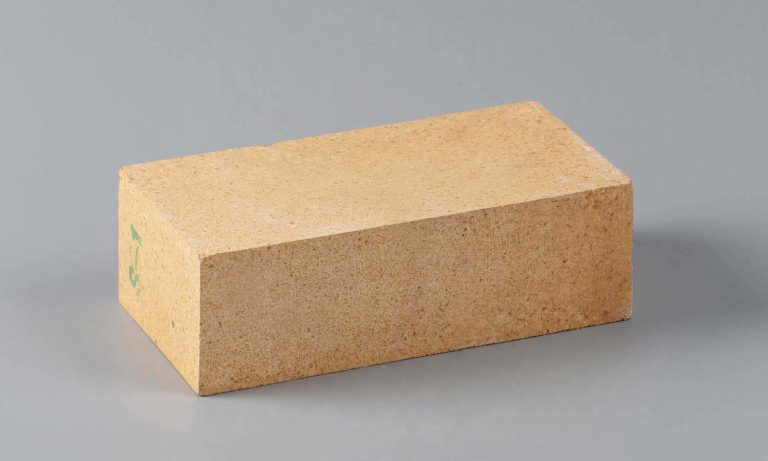

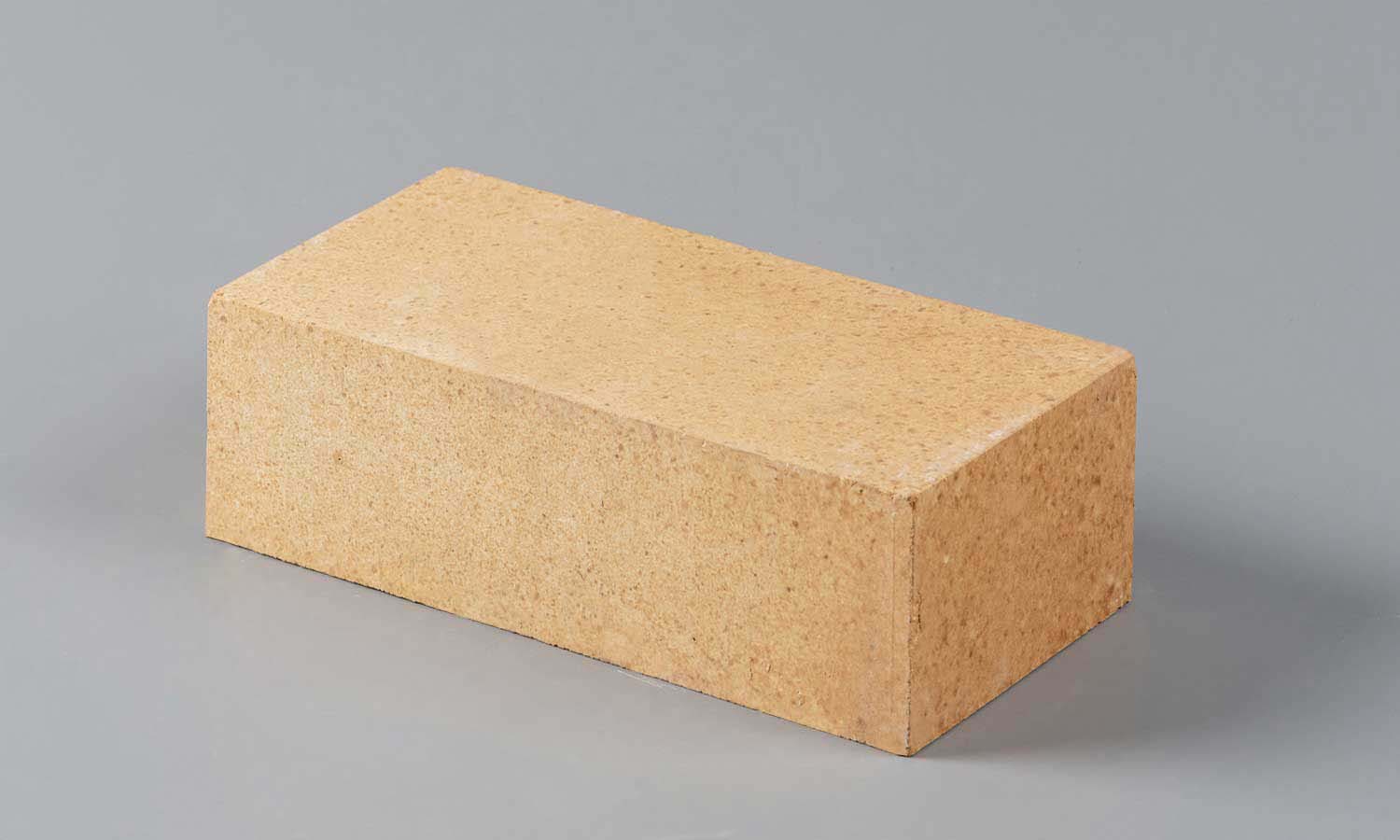

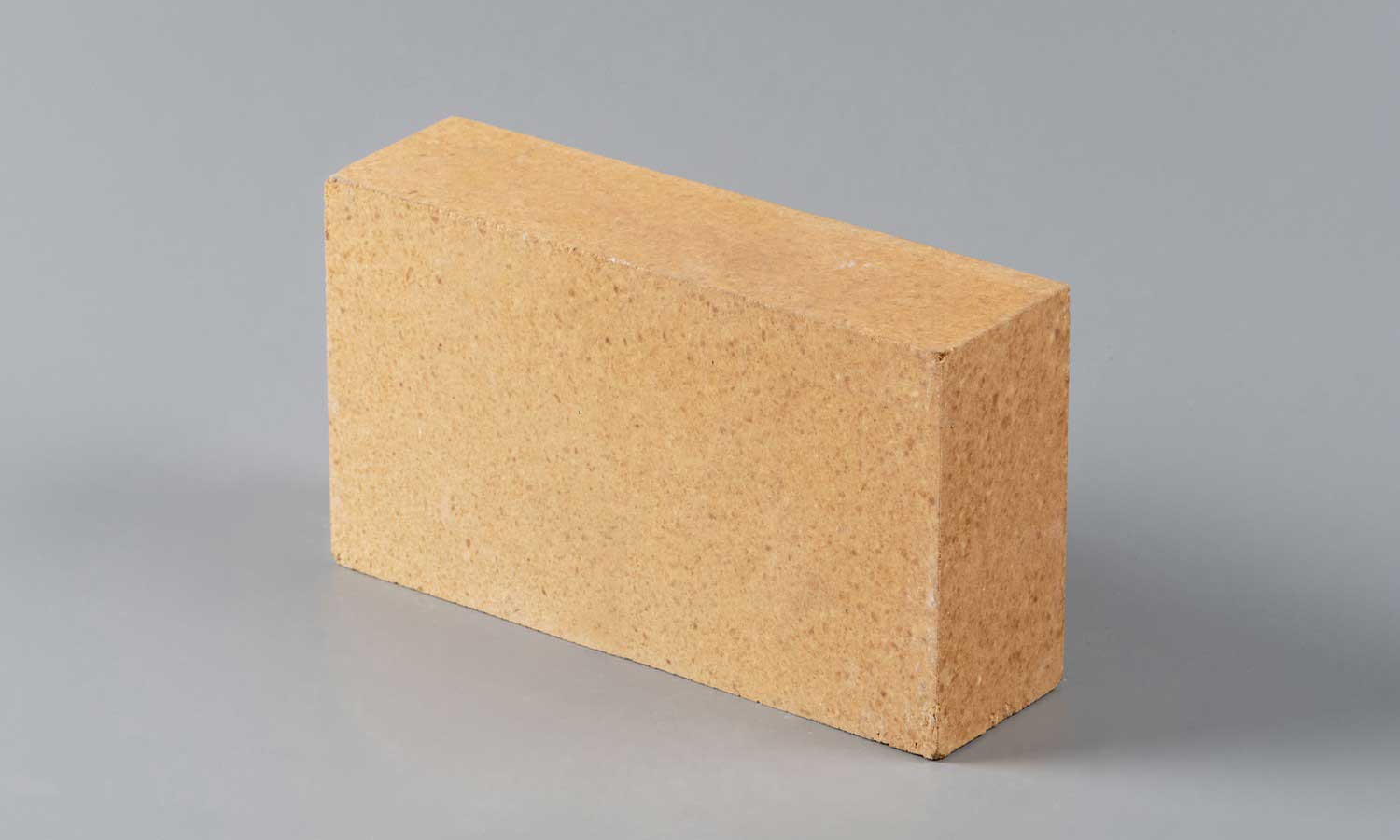

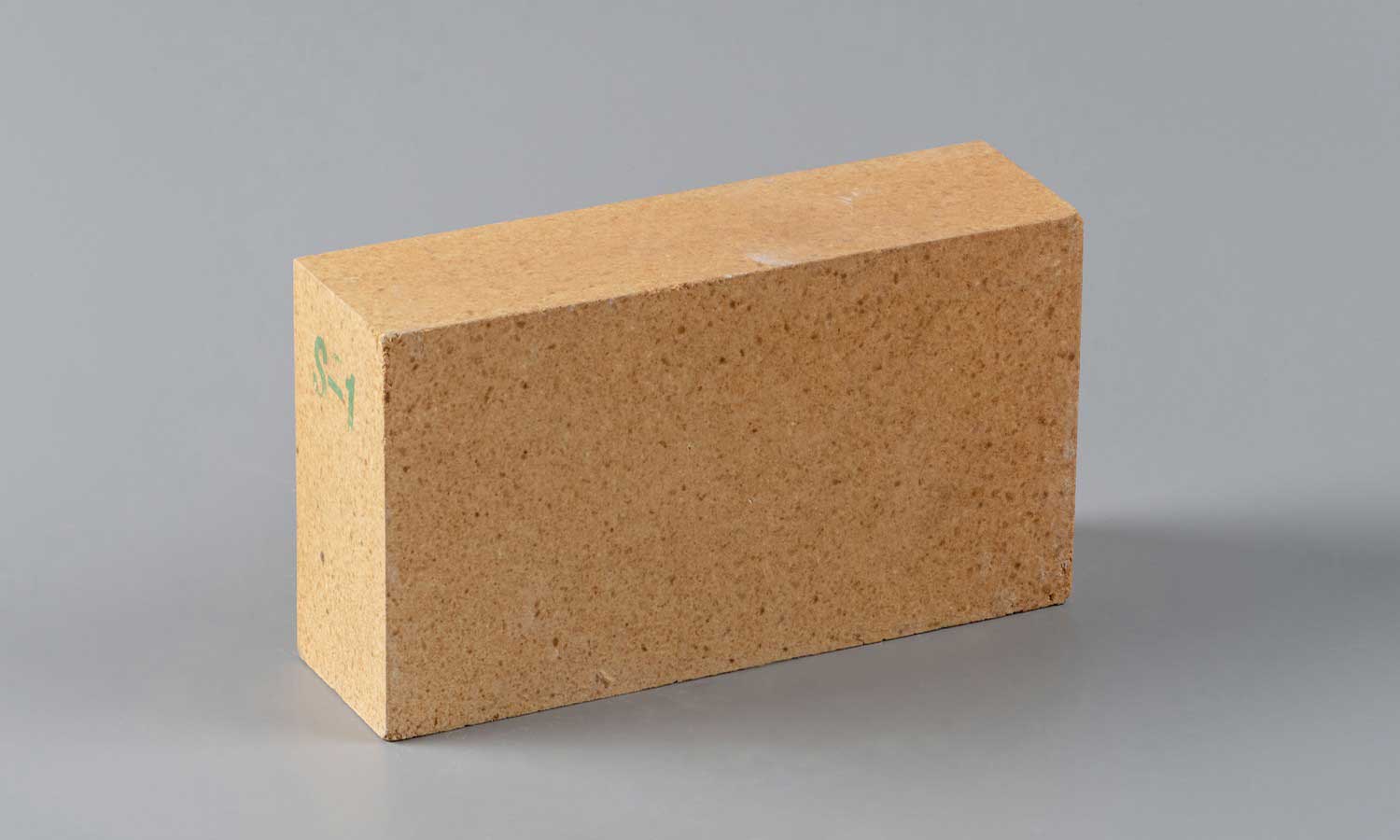

Fireclay (chamotte) brick is a type of refractory material made primarily from refractory clay or chamotte, which is fired at high temperatures. The main component is aluminosilicate. These bricks have good fire resistance, thermal stability, and slag resistance. They are generally categorized into: fireclay bricks, dense fireclay bricks, low-creep fireclay bricks, and thermal shock-resistant fireclay bricks.
Specifications
| Item | Grade | ||||
| PN-42 | PN-40 | PN-35 | PN-30 | PN-25 | |
| ω(Al2O3) / % ≥ | 42 | 40 | 35 | 30 | 25 |
| ω(Fe2O3) / % ≤ | 2.0 | — | — | — | — |
| Open Porosity / % ≤ | 20(22) | 24(26) | 26(28) | 23(25) | 21(23) |
| CCS / MPa ≥ | 45(35) | 35(30) | 30(25) | 30(25) | 30(25) |
| 35(25) | 25(20) | 20(15) | 20(15) | 20(15) | |
| R.U.L. (0.2 MPa T0.6)/ ℃ ≥ | 1400 | 1350 | 1320 | 1300 | 1250 |
| HPLC / % | 1400℃×2 h —0.4～0.1 | 1350℃×2 h —0.4～0.1 | 1300℃×2 h —0.4～0.1 | 1300 ℃×2 h —0.4～0.1 | 1250℃×2 h —0.4～0.1 |
Product Size: We offer refractory brick sizes that comply with ISO, EN, ASTM, JIS, etc, and customized sizes.

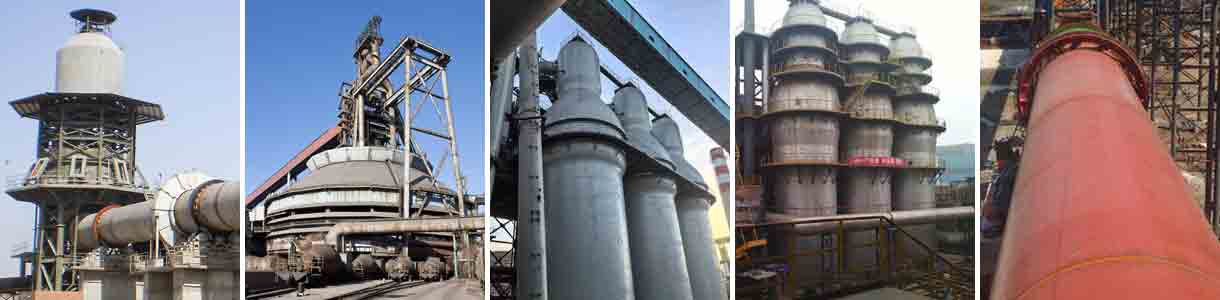

Applications
Fireclay (chamotte) bricks are suitable for coke ovens, hot blast stoves, and general industrial furnaces.
Dense fireclay bricks are suitable for blast furnaces, lime kilns, cement kilns, glass kilns, steel ladles, molten iron tanks and general industrial furnaces.
Low-creep fireclay bricks are suitable for anode roasting furnaces, hot blast stoves, and other similar applications.
Thermal shock-resistant fireclay bricks are suitable for hot blast stoves and dry quenching coke furnaces, among others.
Our services: refractory technicians, refractory installation drawings, refractory bricks and castables, refractory masonry services, refractory mixes and precast cell, special shaped bricks, insulation materials, installation supervision, accident investigation and resolution, other customized services.
