Description

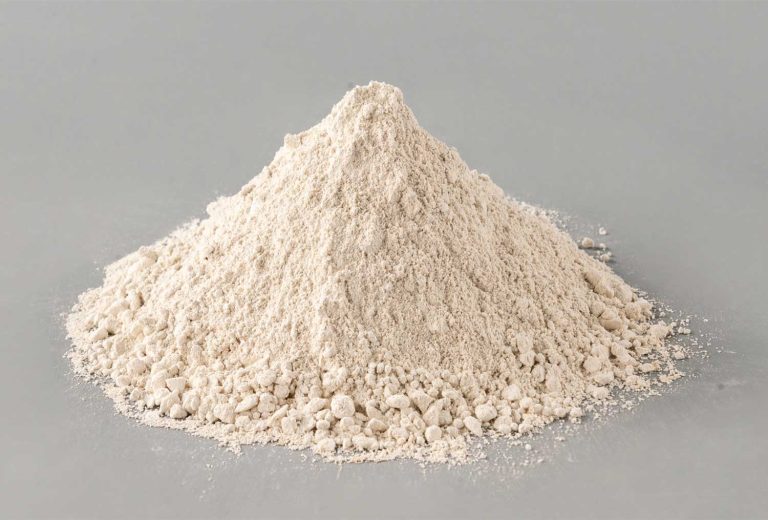

Zirconia low-cement gunning mix is an unshaped refractory material composed of refractory materials with a specific particle size distribution, chemical binders, and additives, used for repairing the linings of thermal equipment through spray application. Its main components include Corundum, zirconia, low-cement binders, and additives. It is characterized by high refractoriness, excellent thermal shock resistance and corrosion resistance, high strength, strong wear resistance, good adhesion, easy to fast construction for efficient protection.
Specification
| Item | Grade | ||
| AKZP-9 | AKZP-5 | ||
| ω(Al2O3) / % | ≥75 | ≥75 | |
| ω(Cr2O3) +ω(ZrO2) / % | 9 | 5 | |
| Bulk Density/（g/cm3） | 110℃×24h | ≥2.8 | ≥2.75 |
| Cold Modulus of Rupture/ MPa | 110℃×24h | ≥8 | ≥7 |
| 1000℃×3h | ≥11 | ≥10 | |
| Cold Crushing Strength/ MPa | 110℃×24h | ≥70 | ≥65 |
| 1000℃×3h | ≥100 | ≥90 | |
| TSR (1000℃ ~ Cold) / % | 110℃×24h | 25 | 20 |
| HPLC / %（Carbon-bed method） | 1000℃×3h | -0.6~0 | -0.6~0 |
| Thermal Conductivity W/（m·K） | 400℃ | 3~4 | 2~3 |
Applications
Primarily used for the lining repairing of various industrial high-temperature kilns and equipment.
Our services: refractory technicians, refractory installation drawings, refractory bricks and castables, refractory masonry services, refractory mixes and precast cell, special shaped bricks, insulation materials, installation supervision, accident investigation and resolution, other customized services.
