Description

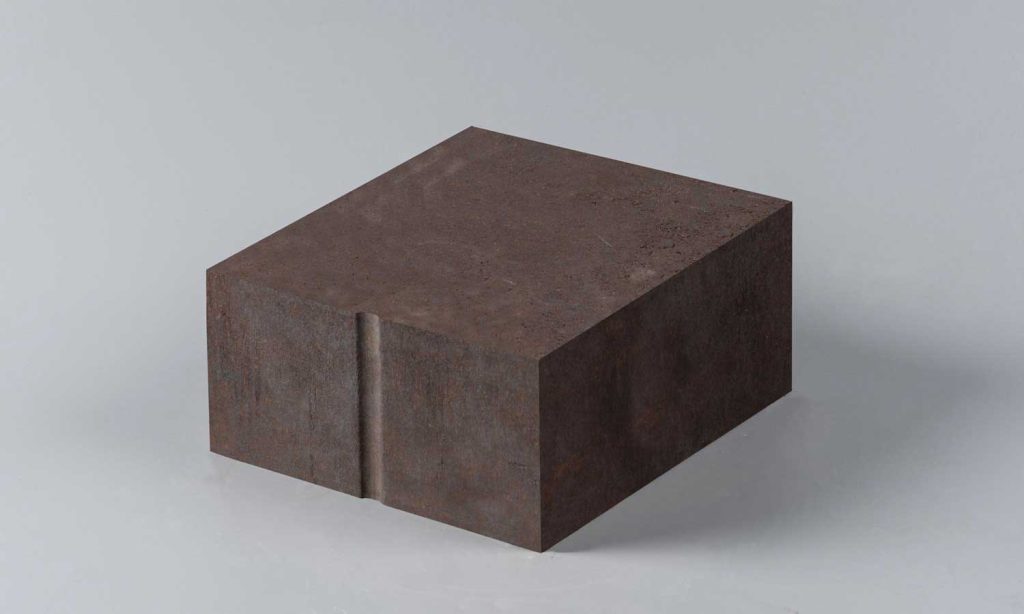

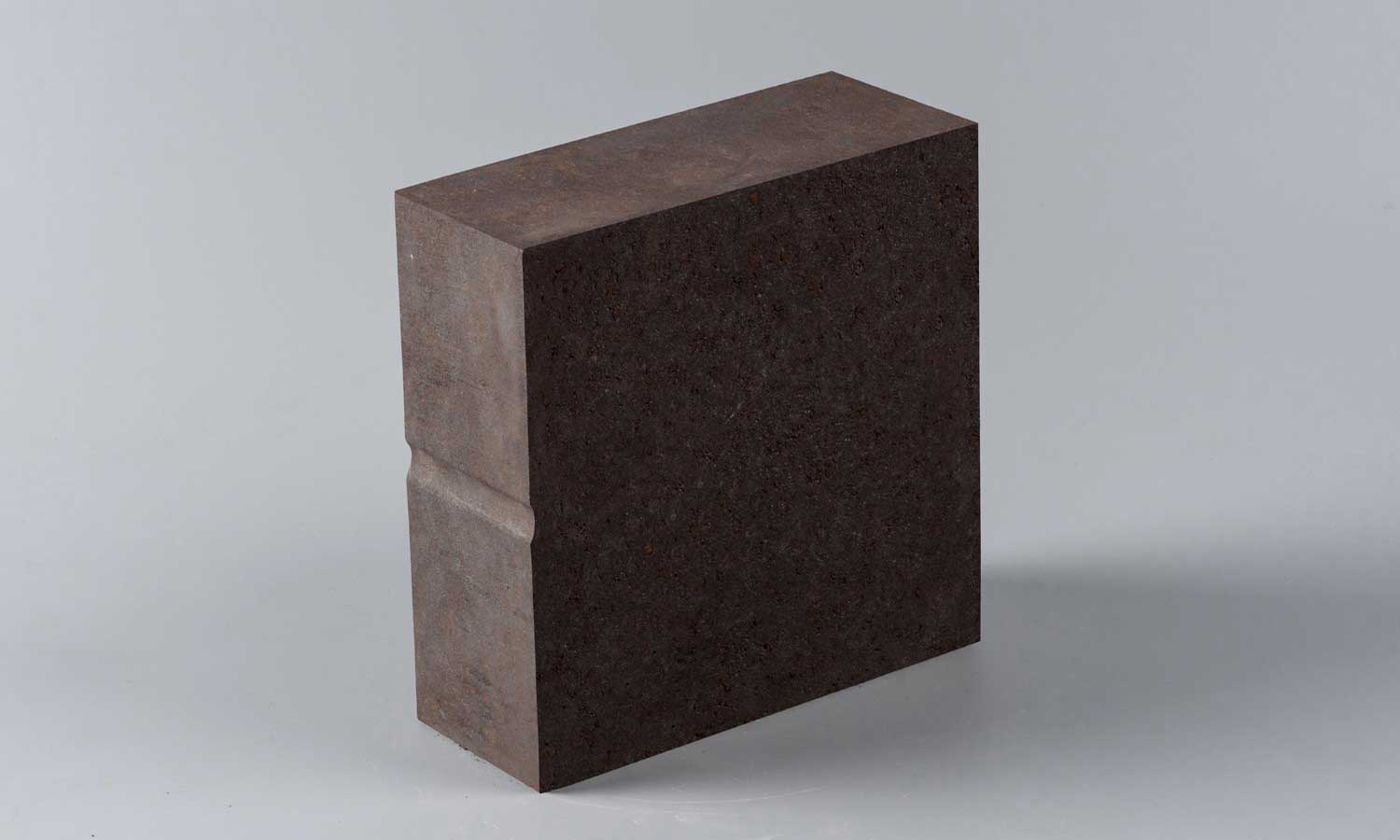

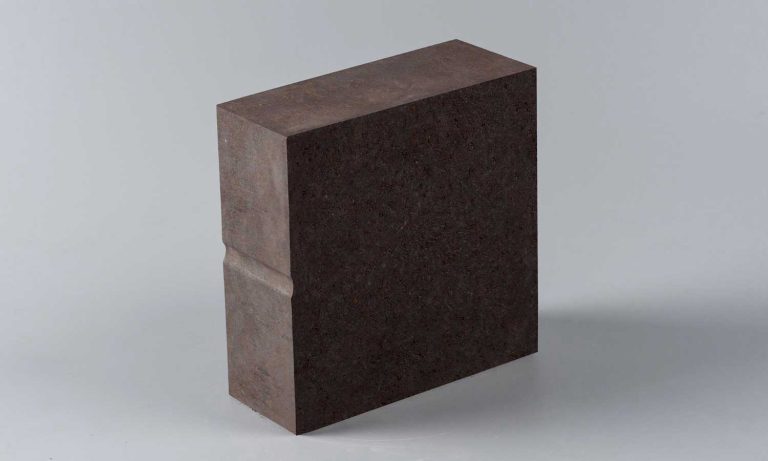

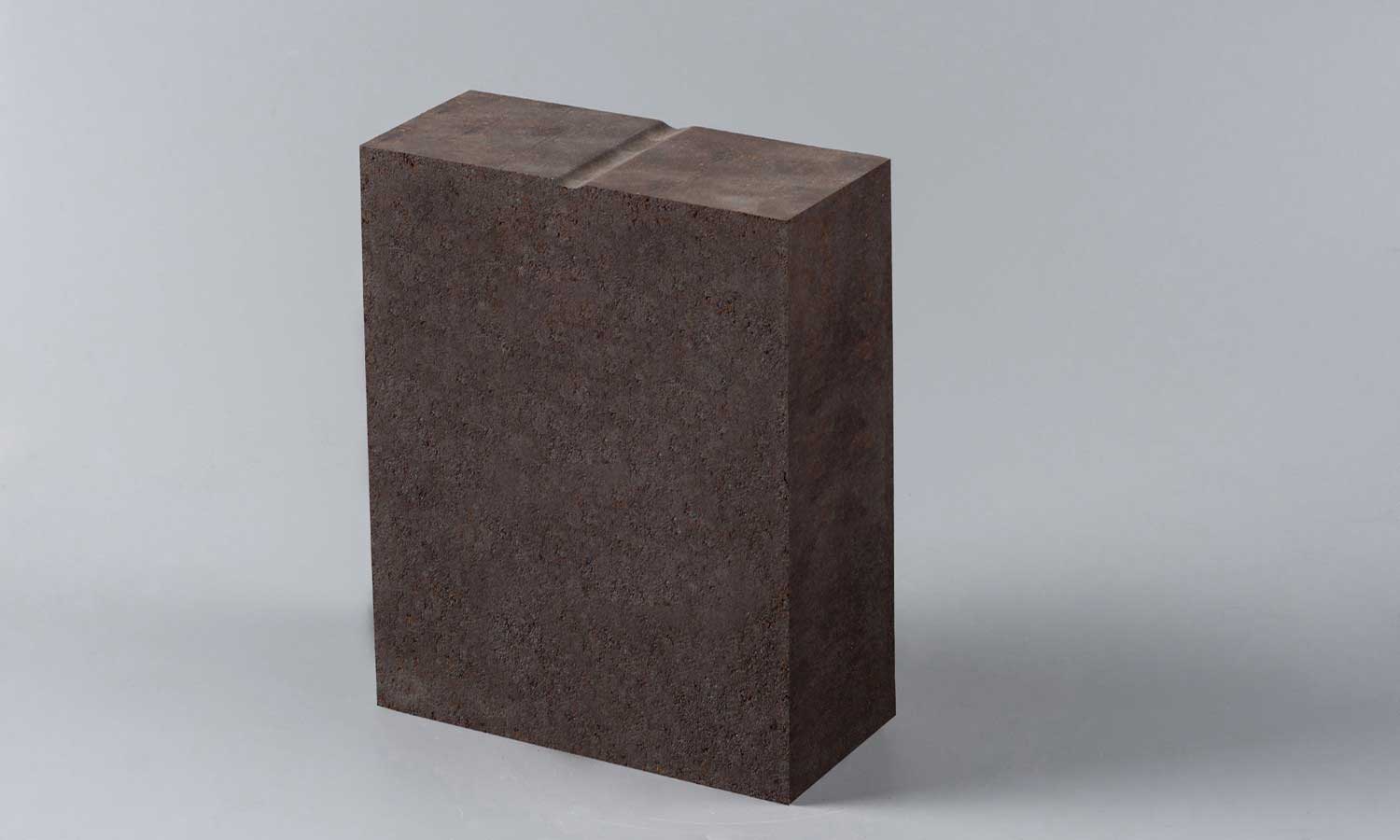

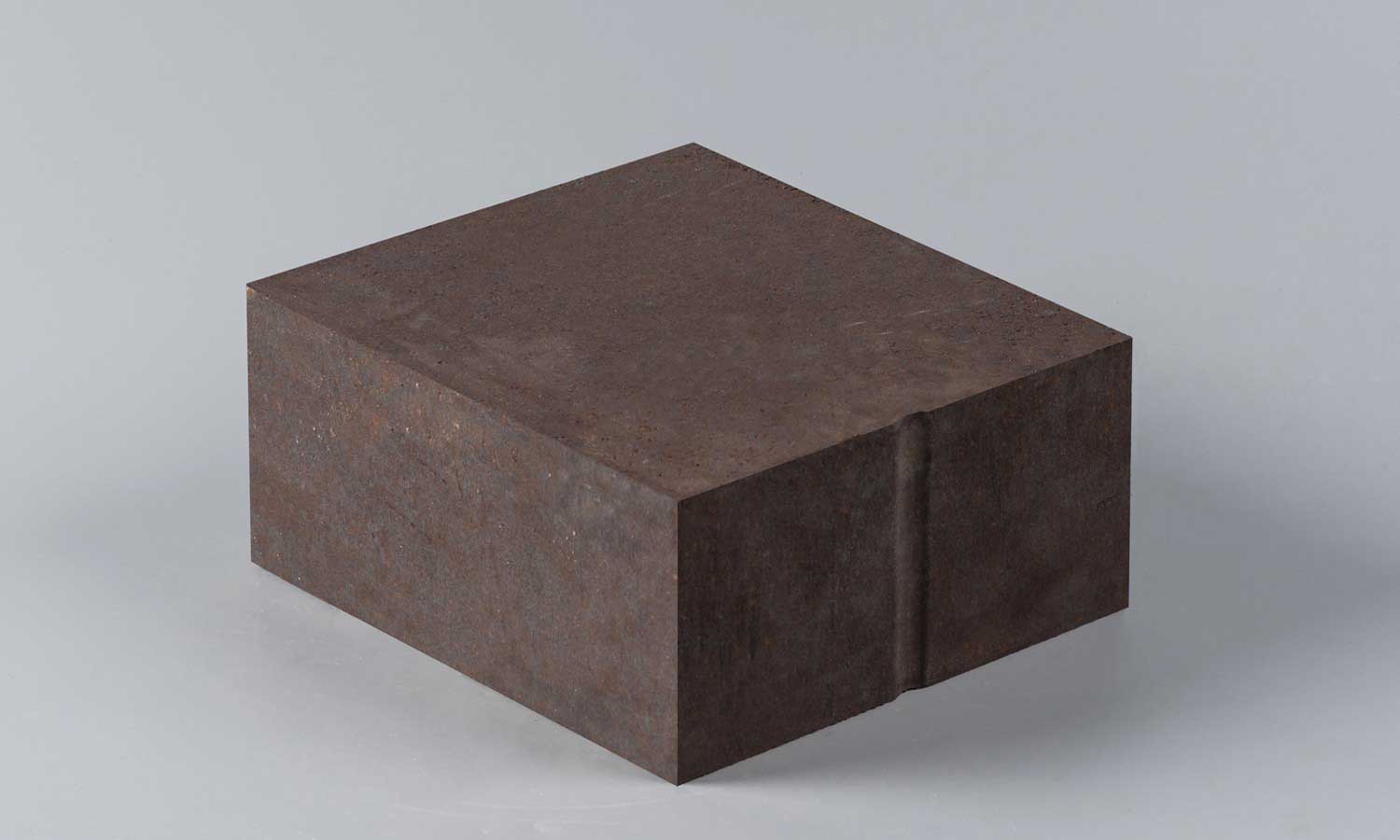

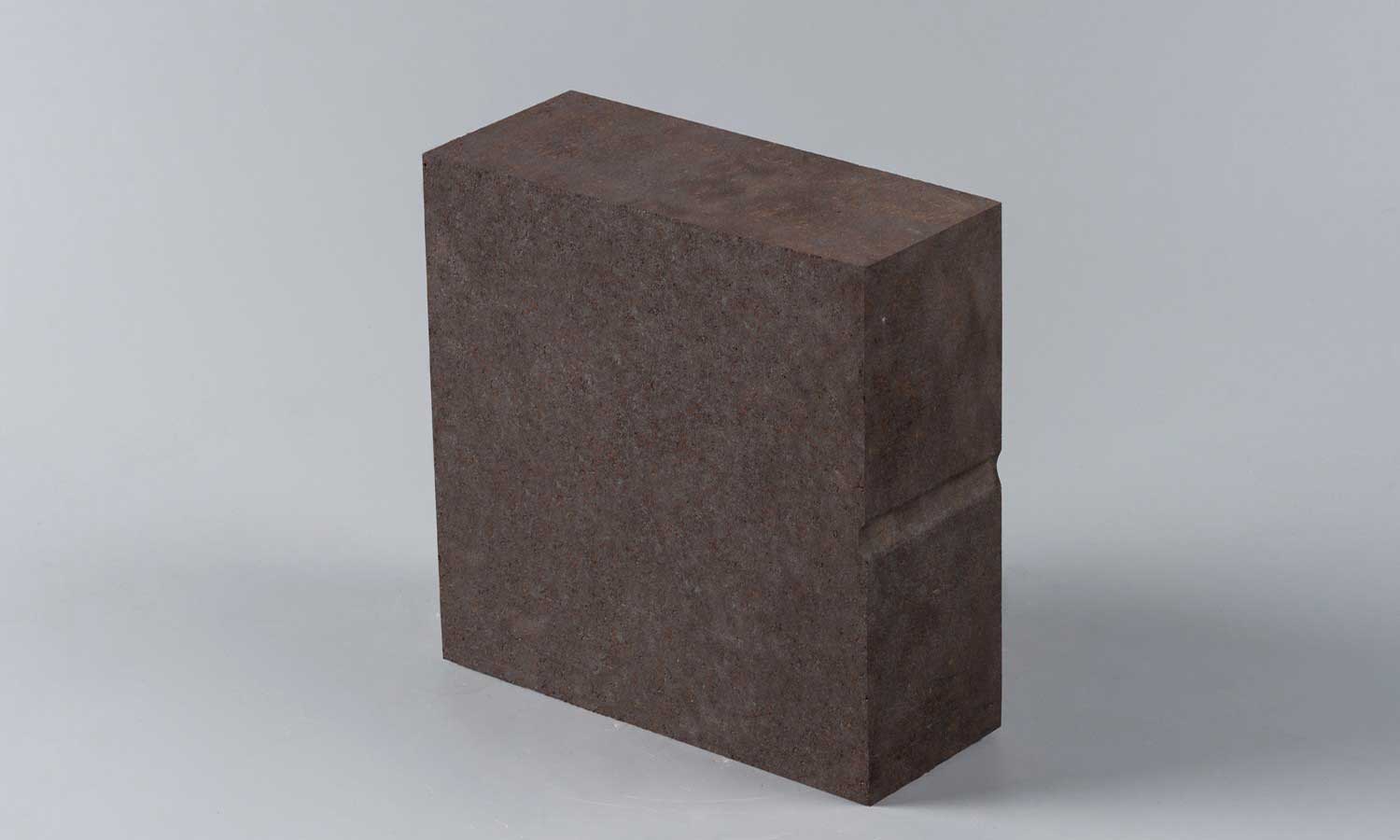

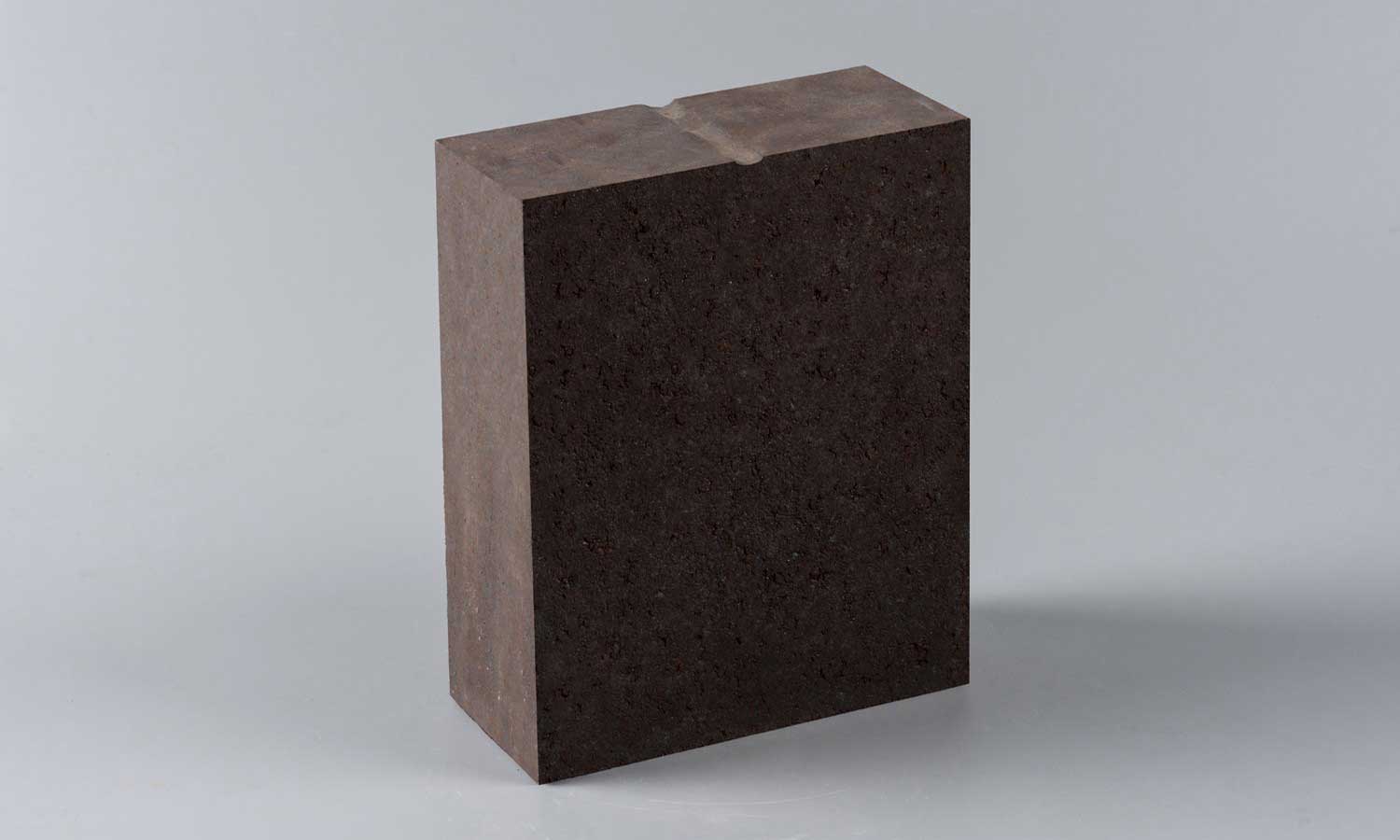

Fused semi-rebonded magnesia-chrome bricks are made from fused magnesia-chrome spinel, high-purity magnesia, high-purity chrome concentrate, and a composite high-temperature toughening agent. They are formed under high pressure and sintered at high temperature. These bricks exhibit excellent high-temperature performance and thermal stability, high mechanical strength, superior corrosion resistance, and outstanding anti-spalling performance.
Product Size: We offer refractory brick sizes that comply with ISO, EN, ASTM, JIS, etc, and customized sizes.
Specification
| Item | Grade | |||||||||
| BMGe-26 | BMGe-24 | BMGe-22 | BMGe-20A | BMGe-20B | BMGe-18 | BMGe-16A | BMGe-16B | BMGe-12A | BMGe-12B | |
| ω(MgO)/% ≥ | 50 | 50 | 55 | 58 | 55 | 58 | 60 | 55 | 68 | 65 |
| ω(Cr2O3)/% ≥ | 26 | 24 | 22 | 20 | 20 | 18 | 16 | 16 | 12 | 12 |
| ω(SiO2)/% ≤ | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | 2.0 | 2.0 | 2.5 | 2.0 | 2.5 |
| Open Porosity/% ≤ | 16（15） | 16（15） | 16（15） | 16（15） | 16（15） | 17（15） | 16（15） | 17（16） | 16（15） | 17（16） |
| CCS/MPa ≥ | 40(45) | 40(45) | 40(45) | 40(45) | 35(40) | 40(45) | 40(45) | 35(40) | 40(45) | 35(40) |
| min35(40) | min35(40) | min35(40) | min35(40) | min30(35) | min35(40) | min35(40) | min30(35) | min35(40) | min30(35) | |
| R.U.L (0.2 MPa T0.6)/℃ | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
Application

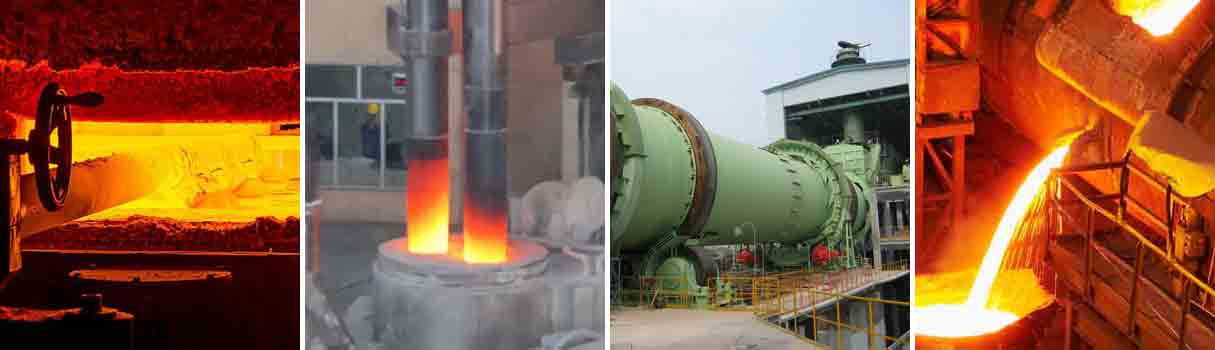

Widely used in critical areas of industries such as metallurgy, cement, and non-ferrous metals, slag line and severely corroded areas of secondary refining furnaces, transition zone and burning zone of cement rotary kilns, regenerator of glass furnaces,etc.
Our services: refractory technicians, refractory installation drawings, refractory bricks and castables, refractory masonry services, refractory mixes and precast cell, special shaped bricks, insulation materials, installation supervision, accident investigation and resolution, other customized services.
