Description

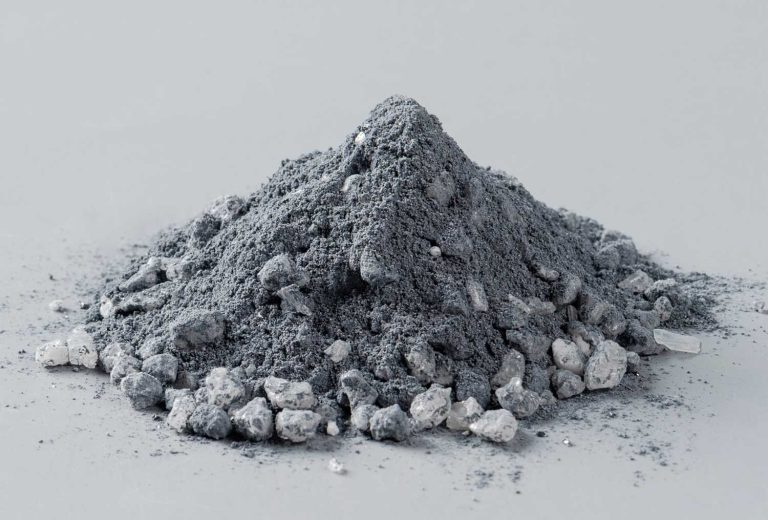

Corundum Silicon Carbide Carbon ultra-low cement castable is a kind of refractory material composed of sintered or fused corundum and silicon carbide as aggregates, sintered/fused corundum powder, silicon carbide powder, and graphite as the substrate, and ultra-low cement as the binder. This castable exhibits excellent high-temperature performance, especially the resistance to molten iron and slag penetration and corrosion.
Specification
| Item | Grade | ||||||||
| ASC-1 | ASC-2 | ASC-3 | ASC-4 | ASC-5 | ASC-6 | ASC-7 | ASC-8 | ||
| ω(Al2O3)/%≥ | 70 | 55 | 65 | 60 | 55 | 55 | 60 | 55 | |
| ω(SiC+F.C)/%≥ | 12 | 25 | 16 | 12 | 10 | 14 | 12 | 15 | |
| Bulk Density（g/cm3）≥ | 110℃×24h | 2.85 | 2.80 | 2.80 | 2.70 | 2.65 | 2.65 | 2.70 | 2.45 |
| 1450℃×3h | 2.80 | 2.75 | 2.75 | 2.65 | 2.60 | 2.60 | 2.65 | 2.40 | |
| CCSMPa≥ | 110℃×24h | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 12 |
| 1450℃×3h | 50 | 45 | 50 | 45 | 45 | 45 | 50 | 20 | |
| HPLC / % | 1450℃×3h | -0.1~0.5 | -0.1~0.5 | -0.1~0.5 | -0.1~0.5 | -0.1~0.5 | -0.1~0.5 | -0.1~0.5 | -0.5~0.5 |
| Recommended Use | ≥2500m3 Blast furnace main trenchiron line | ≥2500m3 Blast furnace main trenchslag line | 1000m3~2500m3 Blast furnace main trench | 1000m3 Blast furnace main trench | Iron runner | Slag runner | Swing trough | Hot repair of iron runner | |
Applications

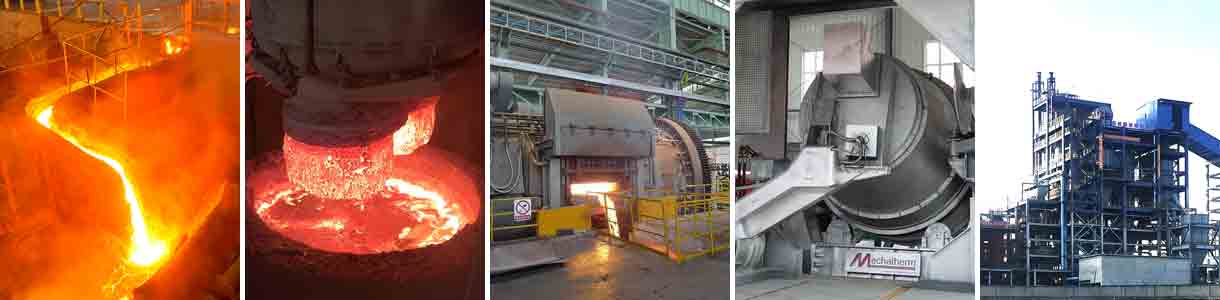

Typically used as the lining for the troughs and containers of molten metal or slag , such as molten iron troughs of cupola and molten iron ladles.
Our services: refractory technicians, refractory installation drawings, refractory bricks and castables, refractory masonry services, refractory mixes and precast cell, special shaped bricks, insulation materials, installation supervision, accident investigation and resolution, other customized services.
